Double pantograph + telescope · flagship reach

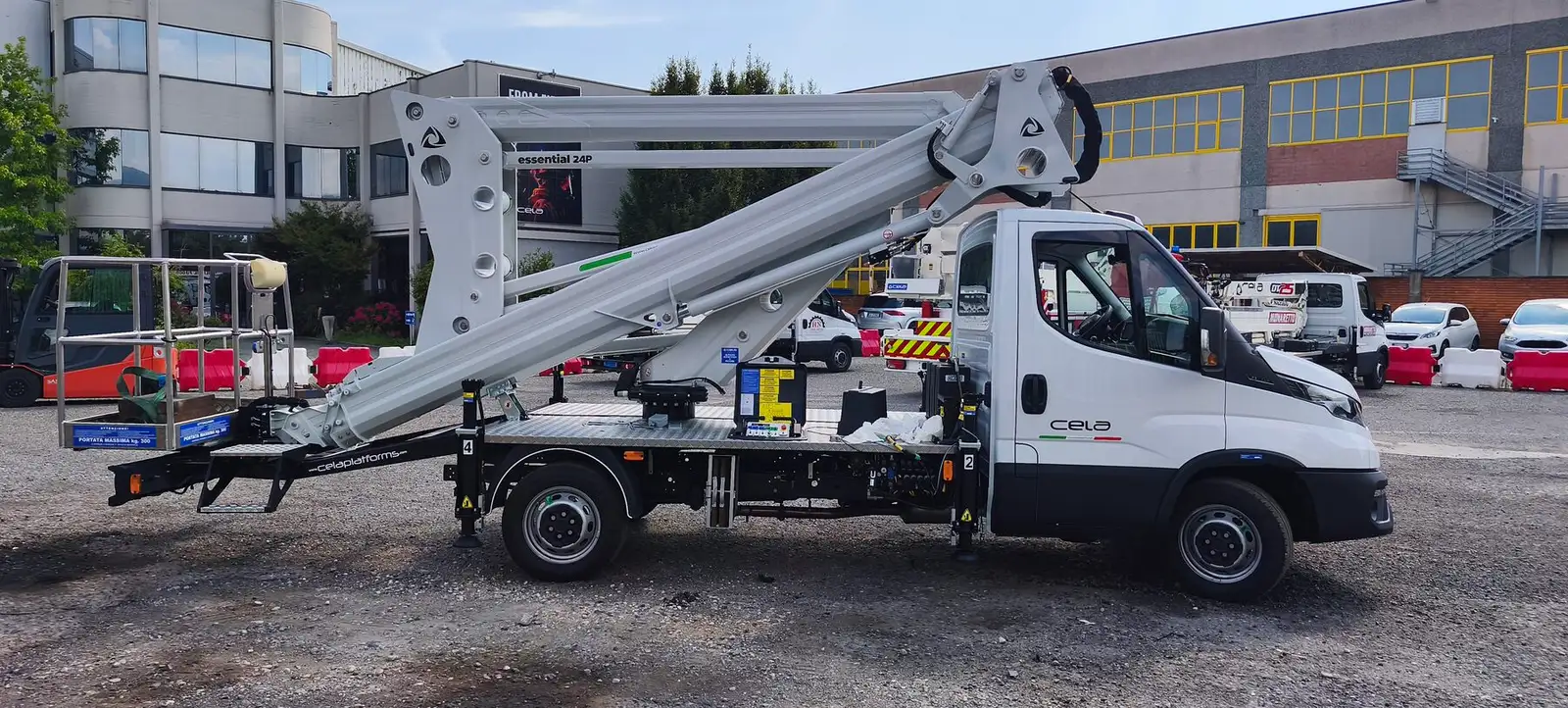

Cela Essential 24P

The flagship of the Essential range. Twenty-four metres of working height and 12.5 m of outreach with 100 kg in the basket, from a truck that still weighs in at 3.5 tonnes and drives on a standard B licence — in a body barely 7.6 m long.

Working height
24 m
Floor height
22 m
Outreach @ 100 kg
12.5 m
Basket load
300 kg

Cela Essential 24P

Working height
24 m
Floor height
22 m
Outreach @ 100 kg
12.5 m
Basket load
300 kg

Why it wins

  • 24 m on a B licence

    The height that normally demands a 7.5 t chassis and a C-licence driver, delivered at 3.5 t — any operator in the fleet can drive it to site.

  • Reach and up-and-over together

    12.5 m of outreach with 100 kg still in the basket, plus 9.5 m of up-and-over height overhang to clear rooflines and obstacles.

  • Flagship height, compact body

    Barely 7.6 m long and under 3 m tall: a 24-metre machine that parks, travels and stabilises like a much smaller truck.

Technical data

Technical data — Cela Essential 24P
Maximum working height24.00 m
Maximum basket floor height22.00 m
Maximum working outreach12.50 m (100 kg)
Height overhang (up-and-over)9.50 m
Maximum load in the basket300 kg
Turret rotation225° + 225° (non-continuous)
Basket hydraulic rotation±90°
Aluminium basket1400 × 700 × 1100 mm
StabilisationH+H inside vehicle profile
Jacking capabilityUp to 8° recovered by the stabilisers + 3° in operation
Chassis3.5 t GVW — Iveco Daily 35S14 (B licence)
Also available on Mercedes Sprinter and Isuzu
Overall length~7,640 mm
Overall height~2,990 mm

Working height and outreach can vary by +/−5% depending on operating conditions. Technical data indicative — see the official data sheet.

Standard warranty 12 months · Delivery ex works CELA, Castegnato (BS), Italy

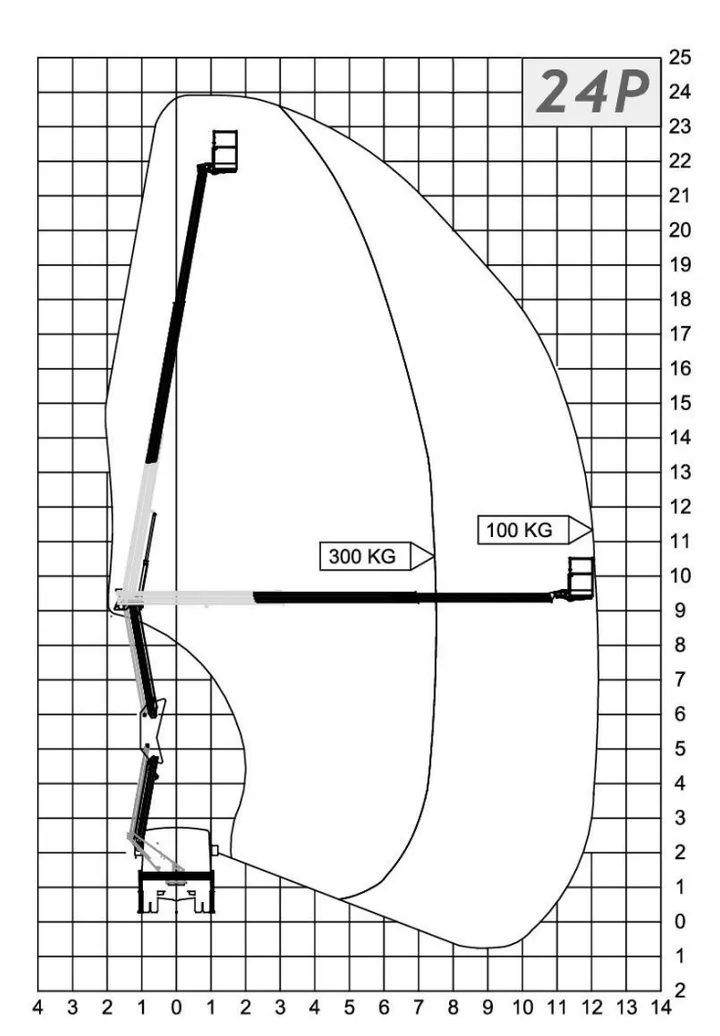

Cela Essential 24P working diagram
Essential 24P — working diagram

Standard equipment

Everything below is standard equipment on the Cela Essential 24P — included on every unit, not an options list.

  • Aluminium basket

    Light 1400 × 700 × 1100 mm aluminium basket: full working space and 300 kg capacity for two operators, with less dead weight on the boom.

  • Automatic folding (Home function)

    One command returns the boom to its transport cradle automatically — perfect stowing at the end of every job, with no closing sequence to remember.

  • Automatic jacking from basket and ground

    Self-levelling outrigger deployment started from either control station: the machine sets itself up correctly in moments, on the first attempt.

  • Outrigger pads with their cage

    The outrigger pads travel in their own cage on the truck: always at hand, nothing extra to load.

  • Cables and hoses inside telescope

    All hydraulic hoses and electrical cables run protected inside the boom profile: nothing to snag on structures, far less wear, easier cleaning.

  • Anti-dust brushes on the boom

    Brushes protect the boom: they keep dust and dirt away from the telescopic slides and extend the life of the sliding pads.

  • Turret rotation 225° + 225°

    225° each way, non-continuous: the basket reaches the work points around the truck without repositioning the vehicle.

  • Hydraulic basket rotation ±90°

    Turn the basket hydraulically to face the work squarely — full 180° of adjustment without moving the boom or the truck.

  • Front-mounted basket

    On the P series the basket is mounted at the front of the boom: direct access to the work point.

  • Authorised exit at height

    On the P series the operator can step out of the basket at height safely (manufacturer's self-certification).

  • Ergonomic panels (ground and basket)

    Identical, clearly laid-out control panels at both stations: one logic to learn for the whole crew, fewer errors under pressure.

  • Wired ground control

    Wired controls from the ground to set up and operate: the operator can run the machine from outside the basket too.

  • Truck cabin anti-crash system

    Electronic supervision stops boom movements before they can reach the truck cabin — protecting the vehicle and the repair budget.

  • Air or water connection in basket

    A dedicated air/water line piped up the boom feeds pneumatic tools or washing lances directly at height.

  • Clearance lights

    High-visibility clearance lighting keeps the vehicle outline clearly marked during road transfer and early-morning or night set-ups.

  • Electronic slope sensor

    Constantly monitors chassis inclination during set-up and work, keeping stabilisation inside safe limits — with the stabilisers recovering slopes of up to 8°.

  • 230 V socket with RCD in the basket

    Mains power available at height for drills, grinders, lamps and chargers — no extension cord dangling down the boom.

  • 12 Vdc socket in basket

    Low-voltage supply in the basket for radios, chargers and accessories, straight from the machine.

  • Safety hydraulic handpump

    Manual emergency pump: the basket can always be brought down safely, even with the engine stopped or complete power loss.

  • Safety valves flanged on all cylinders

    Mounted directly on each cylinder, with no hose in between: the boom holds its position even in the event of a hydraulic line failure.

  • Automatic PTO release system

    The power take-off disengages by itself when it should: the driveline is protected from oversight, every single day.

  • Centring indicator light

    Tells the operator at a glance when the boom is centred — quick, certain checks before stowing or driving off.

  • Proportional hydraulic control valve

    Proportional hydraulic control: smooth, precise movements metered by the lever, with the basket empty or fully loaded.

  • Cataphoresis + powder coating

    The full structure is immersed in a cataphoresis anti-corrosion bath, then powder coated: automotive-grade protection that keeps its finish — and its resale value — for the whole fleet life.

  • RAL 7036 and RAL 9005 finish

    Aerial structure in grey RAL 7036, subframe in black RAL 9005.

  • Warning sound signal

    An acoustic signal warns when the machine is not in transport configuration: a clear reminder before taking to the road.
