Straight telescopic · two stabilisation options

Cela Essential 18T

The entry point to the Essential range: a truck under 7 metres long with a fast straight telescopic boom. Choose the 18T, with fixed outriggers inside the vehicle profile for the narrowest footprint, or the 18TX, with extendable outriggers — total, asymmetrical or in-shape — to push outreach to 13 m.

Working height
18 m
Floor height
16 m
Outreach
11–13 m
Basket load
300 kg

Cela Essential 18T

Working height
18 m
Floor height
16 m
Outreach
11–13 m
Basket load
300 kg

Why it wins

  • 300 kg in the basket

    Full 300 kg basket capacity — no choosing between a second operator and the toolbox.

  • The shortest path to 18 metres

    Under 7 m overall length, outriggers inside the vehicle profile and that recover up to 8° of incline (+ 5° in operation): it sets up in narrow streets, tight yards and on sloping ground.

  • Two machines in one price list

    Same boom, two versions: the 18T with fixed outriggers for the tightest jobsites or the 18TX with extendable outriggers (total, asymmetrical or in-shape) for 13 m of outreach — configure the machine to the fleet, not the other way round.

Technical data

Technical data — Cela Essential 18T
Maximum working height18.00 m
Maximum basket floor height16.00 m
Max working outreach — 18T11.00 m (100 kg)
Max working outreach — 18TX13.00 m (100 kg)
Maximum load in the basket300 kg
Turret rotation225° + 225° (non-continuous)
Basket hydraulic rotation±75°
Aluminium basket1400 × 700 × 1100 mm
Stabilisation18T: H+H inside vehicle profile · 18TX: HE+H (total / asymmetrical / in-shape)
Jacking capabilityUp to 8° recovered by the stabilisers + 5° in operation
Chassis3.5 t GVW — Iveco Daily 35S14 (B licence)
Also available on Mercedes Sprinter and Isuzu
Overall length~6,990 mm
Overall height~2,990 mm

Working height and outreach can vary by +/−5% depending on operating conditions. Technical data indicative — see the official data sheet.

Standard warranty 12 months · Delivery ex works CELA, Castegnato (BS), Italy

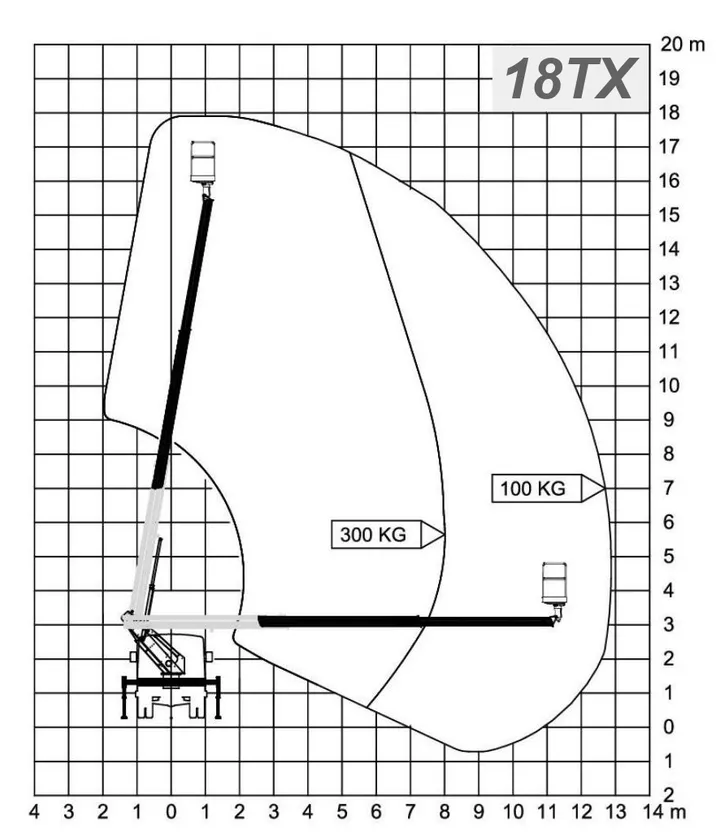

Cela Essential 18TX working diagram
Essential 18TX — working diagram

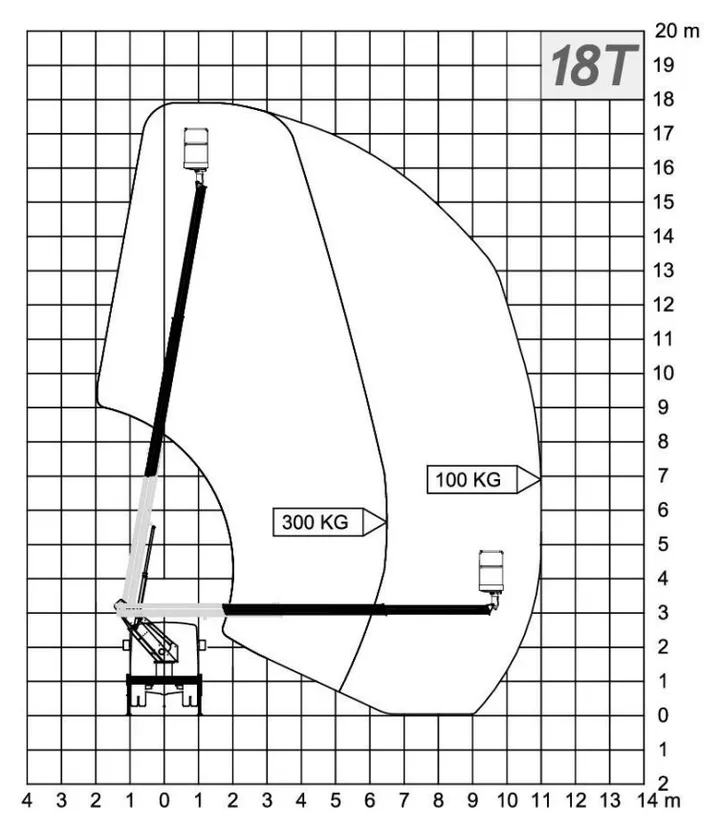

Cela Essential 18T working diagram
Essential 18T — working diagram

Standard equipment

Everything below is standard equipment on the Cela Essential 18T — included on every unit, not an options list.

  • Aluminium basket

    Light 1400 × 700 × 1100 mm aluminium basket: full working space and 300 kg capacity for two operators, with less dead weight on the boom.

  • Automatic folding (Home function)

    One command returns the boom to its transport cradle automatically — perfect stowing at the end of every job, with no closing sequence to remember.

  • Automatic jacking from basket and ground

    Self-levelling outrigger deployment started from either control station: the machine sets itself up correctly in moments, on the first attempt.

  • Outrigger pads with their cage

    The outrigger pads travel in their own cage on the truck: always at hand, nothing extra to load.

  • Cables and hoses inside telescope

    All hydraulic hoses and electrical cables run protected inside the boom profile: nothing to snag on structures, far less wear, easier cleaning.

  • Anti-dust brushes on the boom

    Brushes protect the boom: they keep dust and dirt away from the telescopic slides and extend the life of the sliding pads.

  • Turret rotation 225° + 225°

    225° each way, non-continuous: the basket reaches the work points around the truck without repositioning the vehicle.

  • Hydraulic basket rotation ±75°

    Turn the basket hydraulically to face the work squarely — full 150° of adjustment without moving the boom or the truck.

  • Ergonomic panels (ground and basket)

    Identical, clearly laid-out control panels at both stations: one logic to learn for the whole crew, fewer errors under pressure.

  • Wired ground control

    Wired controls from the ground to set up and operate: the operator can run the machine from outside the basket too.

  • Truck cabin anti-crash system

    Electronic supervision stops boom movements before they can reach the truck cabin — protecting the vehicle and the repair budget.

  • Air or water connection in basket

    A dedicated air/water line piped up the boom feeds pneumatic tools or washing lances directly at height.

  • Clearance lights

    High-visibility clearance lighting keeps the vehicle outline clearly marked during road transfer and early-morning or night set-ups.

  • Electronic slope sensor

    Constantly monitors chassis inclination during set-up and work, keeping stabilisation inside safe limits — with the stabilisers recovering slopes of up to 8°.

  • 230 V socket with RCD in the basket

    Mains power available at height for drills, grinders, lamps and chargers — no extension cord dangling down the boom.

  • 12 Vdc socket in basket

    Low-voltage supply in the basket for radios, chargers and accessories, straight from the machine.

  • Safety hydraulic handpump

    Manual emergency pump: the basket can always be brought down safely, even with the engine stopped or complete power loss.

  • Safety valves flanged on all cylinders

    Mounted directly on each cylinder, with no hose in between: the boom holds its position even in the event of a hydraulic line failure.

  • Automatic PTO release system

    The power take-off disengages by itself when it should: the driveline is protected from oversight, every single day.

  • Centring indicator light

    Tells the operator at a glance when the boom is centred — quick, certain checks before stowing or driving off.

  • Proportional hydraulic control valve

    Proportional hydraulic control: smooth, precise movements metered by the lever, with the basket empty or fully loaded.

  • Cataphoresis + powder coating

    The full structure is immersed in a cataphoresis anti-corrosion bath, then powder coated: automotive-grade protection that keeps its finish — and its resale value — for the whole fleet life.

  • RAL 7036 and RAL 9005 finish

    Aerial structure in grey RAL 7036, subframe in black RAL 9005.

  • Warning sound signal

    An acoustic signal warns when the machine is not in transport configuration: a clear reminder before taking to the road.

Distributors wanted

The Essential range is expanding into new markets. If you rent, sell or service aerial platforms and want a competitive 3.5 t range, let's talk.

Become a distributor
